| Brand Name : | TranzBrillix |
| Model Number : | HGH35CA |
| Certification : | DE1924083895474 |
| Price : | 6.8-8 USD |
| Payment Terms : | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability : | 100000 pcs / per month |
| Delivery Time : | 1-7 work days |

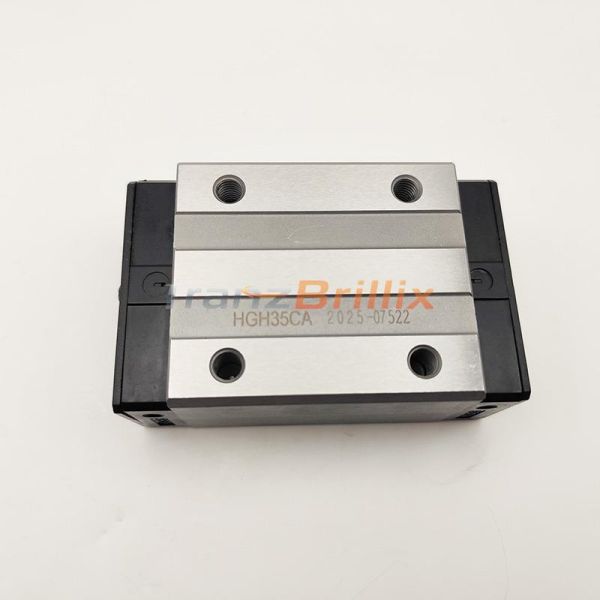

This 35mm linear guide block is engineered as a 100% interchangeable alternative to the HIWIN HGH35CA. It matches the original datasheet specifications for dimensions, load ratings, and mass, making it an ideal cost-effective solution for large CNC routers, injection molding machines, and heavy industrial automation.
Dimensions and load ratings comply with ISO standard series for Size 35.

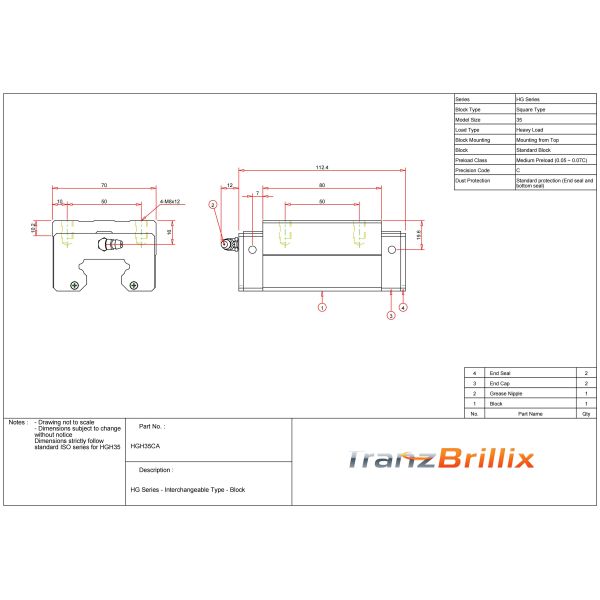

| Dimensional & Mechanical Data | |
|---|---|
| Model Number | HGH35CA (Square Type / Heavy Load) |
| Nominal Rail Width (W) | 35 mm |
| Basic Dynamic Load Rating (C) | 49.52 kN |
| Basic Static Load Rating (C0) | 69.16 kN |
| Weight (Block) | 1.56 kg |
| Weight (Rail) | 6.30 kg/m |
| Static Moment (MR) | 1.95 kN-m |
| Static Moment (MP / MY) | 1.15 kN-m |
| Mounting Bolt Size | M8 x 25 |
⚠️ Critical: Blocks are shipped with anti-rust oil, NOT lubricant. You must grease them before use.
Included in Box: 1x HGH35CA Linear Block, 1x Grease Nipple (M6).
Protection: Vacuum sealed in anti-rust bag, individually boxed.
*Disclaimer: HIWIN® is a registered trademark of HIWIN Technologies Corp. This product is an aftermarket replacement part manufactured by YourBrand and is not affiliated with HIWIN. All technical data is provided for compatibility reference.
|
|
