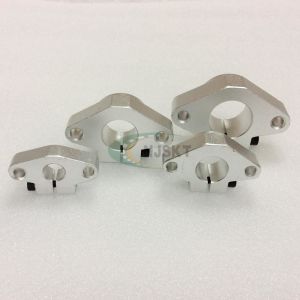

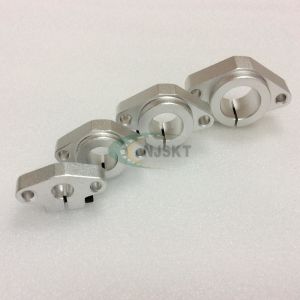

The SHF35 Flanged Linear Shaft Supports provide a robust foundation for 35mm motion systems, featuring an optimized flange design that delivers exceptional stability and mounting versatility. The extended flange profile creates a larger contact surface for secure attachment, effectively distributing loads and resisting torsional stresses that could compromise alignment in demanding applications. This flanged configuration enables direct mounting to equipment frames with multiple fastening options, simplifying installation while ensuring precise shaft positioning. The design's enhanced surface area improves vibration damping characteristics and provides superior resistance to moment forces compared to standard support blocks. Precision-machined with strict attention to perpendicularity between mounting face and bore axis, these flanged supports maintain critical alignment accuracy even under substantial loads. The flange geometry offers particular advantages in systems requiring frequent adjustments or where access for maintenance is limited, combining secure fixation with practical serviceability. These supports excel in heavy industrial applications where 35mm shafts must withstand continuous operation, from automated production lines to material handling systems. The thoughtful flange design not only increases structural integrity but also allows for more flexible machine layout configurations, making the SHF35 an ideal choice for engineers seeking reliable performance in high-capacity linear motion systems where both precision and durability are essential.

② Features of linear shaft supports

Feature 1: Tool-Free Slit Design
The innovative slit design of the shaft supports enables quick, tool-free installation and secure connection to shafts without causing surface damage or compromising structural integrity, ensuring hassle-free assembly and disassembly.

Feature 2: Cost-Efficient Aluminum Extrusion Manufacturing
The economy series shaft supports utilize advanced aluminum extrusion technology, offering a lightweight yet durable solution at a significantly reduced cost. While precision is marginally lower compared to fully machined alternatives, this series maintains sufficient accuracy to meet the functional requirements of most applications, delivering exceptional value for budget-conscious projects.

Feature 3: Fine-Adjustment Through-Hole Tolerance
The precision-engineered clearance in the installation through-hole allows for on-site micro-adjustments, enabling users to achieve optimal shaft alignment and positioning during final assembly. This feature eliminates the need for additional components, streamlining setup in dynamic operational environments.

Feature 4: Standardized Stock Availability
Available in inner diameters ranging from 6mm to 60mm (exact specifications provided in the product catalog), the economy series shaft supports are maintained as standardized stock items. This ensures rapid order fulfillment with same-day shipping capabilities, minimizing downtime and accelerating project timelines for time-sensitive applications.This combination of user-centric design, affordability, adaptability, and rapid availability positions these shaft supports as a versatile solution for both industrial and commercial linear motion systems.
