| Brand Name : | HIWIN |
| Model Number : | MGN7H |
| Certification : | DE1924083895474 |
| Price : | 1-100 USD |
| Payment Terms : | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability : | 100000 pcs / per month |
| Delivery Time : | 1-7 work days |

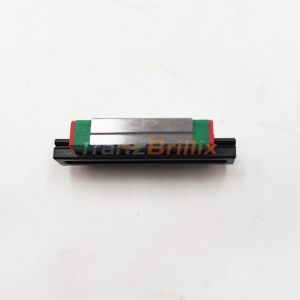

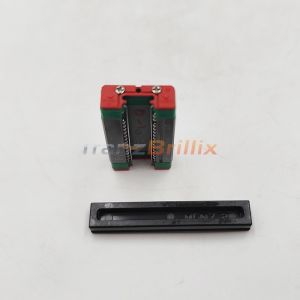

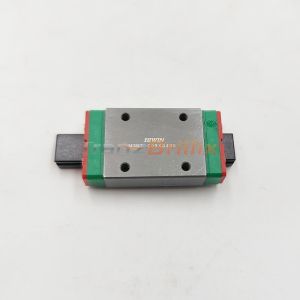

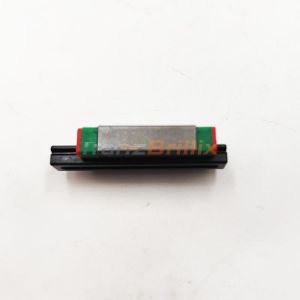

The HIWIN MGN7H Miniature Linear Guideway showcasesHIWIN's
industry-leading expertise in
precision motion control, featuring a high-grade stainless steel
construction for superior corrosion
resistance and durability. This 7mm compact rail system
incorporatesHIWIN's patented recirculating ball
bearing technology, delivering ultra-high precision - perfect for
medical, semiconductor, and cleanroom
applications.The HIWIN-engineered stainless steel provides
exceptional wear resistance while meeting
strict hygiene standards, with specialized HIWIN wiper seals that
block contaminants without increasing
friction. As a genuine HIWIN product, it features the brand's
signature preload adjustment system for
zero-backlash performance and vibration-damped motion
characteristics. The MGN7H maintainsHIWIN's
renowned quality in miniature automation,optical positioning, and
micro-assembly systems, offering self-
lubricating options for maintenance-free operation.With HIWIN's
global technical support and precision
manufacturing heritage, this guideway represents the gold standard
in miniature linear motion solutions
for demanding industries.
Note:
Block: we offers two types of linear guideways, flange and square types
Rail: we offers standard top mounting type
model No. | block length(mm) | preload classes | bolt size | weight(kg) |
MGN7C | 22.5 | Z0/ZF/Z1 | M2*0.4P*6L | 0.010 |
MGN7H | 30.8 | Z0/ZF/Z1 | M2*0.4P*6L | 0.015 |
MGN9C | 28.9 | Z0/ZF/Z1 | M3*0.5P*8L | 0.016 |
MGN9H | 39.9 | Z0/ZF/Z1 | M3*0.5P*8L | 0.026 |
MGN12C | 34.7 | Z0/ZF/Z1 | M3*0.5P*8L | 0.034 |
MGN12H | 45.4 | Z0/ZF/Z1 | M3*0.5P*8L | 0.054 |
MGN15C | 42.1 | Z0/ZF/Z1 | M3*0.5P*10L | 0.059 |
MGN15H | 58.8 | Z0/ZF/Z1 | M3*0.5P*10L | 0.092 |
|
|
